      DW4
      • Features
      12v DC, Max.50A, 0.6hp(0.48kw) Permanent magnet motor
      Produt specification

      Capacity:
      9000lb(4082kg) Rolling;

      7000lb(3175kg) Marine;

      3000lb(1361kg) Pulling capacity

      Line speed:6’(1.8m/min) with load

      Wire rope(Dia.xL):0.22”x30’(5.6mmx9m)

      Power cord:15’(4.5m);Remote control cable:9.9’(3.0m)

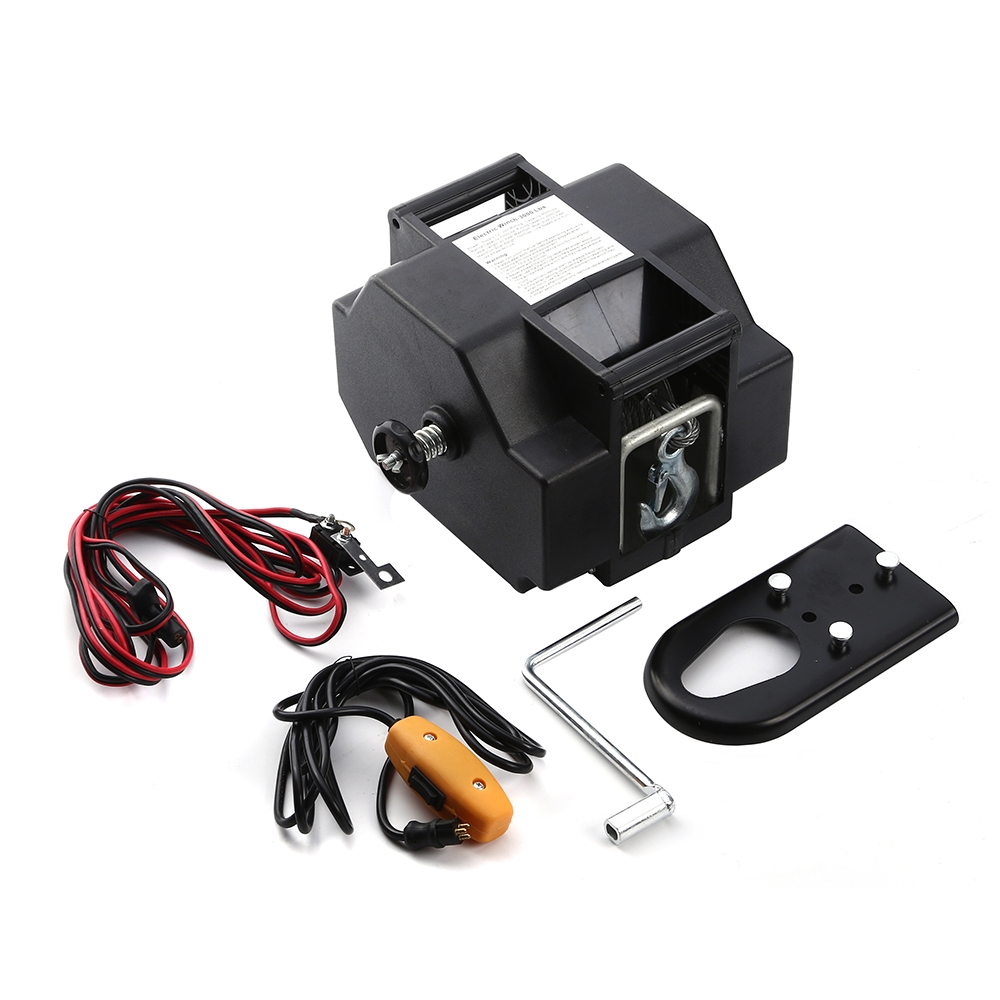

      Mounting plate and Hand crank included

      Overall dimensions(LXWXH):
      10.25"x12"x7.6" (260mmx305mmx193mm)

      New weight:35lb(15.7kg)


      Logistic Information:
      Packing pattern: 1pc per polyfoam inner box, 1pcs per master carton

      Packing Dimension: 35x33.5x24.5cm

      G.W./N.W.: 16/15kg

      Qty /1x20’FCL: 940pcs

      Payment Details:
      Payment terms: L/C at sight or T/T

      MOQ:400 to 499pcs

      Delivery Details:
      FOB Ports:Ningboport /Shanghaiport
      Lead time: 30 to 50 days

      Harmonization System (HS) Code:

      8425 3190
